- ● Improved Performance: The machined aluminum front and rear portal axles of our RC crawler provide improved performance over traditional axles.
- ● Perfect Fit: Designed specifically for the Vanquish VS4-10 Phoenix F10 LCG Chassis 1/10 RC car wheelbase SCX10 III AXI03006 AXI03007, our axles provide a perfect fit for your RC vehicle.Specially designed for , suitable for all kinds of SCX10 III RC cars. Machined hardened steel gantry gears (28T/20T), high pinion hypoid machined axle gears (30T/8T), stainless steel construction drive shafts.
- ● Laser Cutting and CNC Machining: Our axles are made with the highest levels of precision and accuracy using laser cutting and CNC machining techniques.
- ● Durability: Made with high-quality materials, our axles are durable and built to last, perfect for the toughest of terrains.
- ● Enhanced Control: The portal design of our axles enhances control and stability, allowing you to take on challenging obstacles with ease.
Features:
Quality aluminum alloy, laser cutting and CNC machined
Black/silver anodized
Machined hard steel Portal Gears(28T/20T),High-Pinion Hypoid Machined Axle Gears (30T/8T),stainless steels Construction Driveshafts.
Up to 45 Degrees of Steering,High Caster reinforced C-Hub
One-Piece Molded Bearing Retainers
Adjustable Lower Shock Mounting Position (S8E Offset Pivot Ball)
Specification:
Material: Aluminumalloy(Axle housing,Steeringtierod,Adapters) Stainless steels(Driveshafts) Hard steel(Gear)
Color: Black/Silver

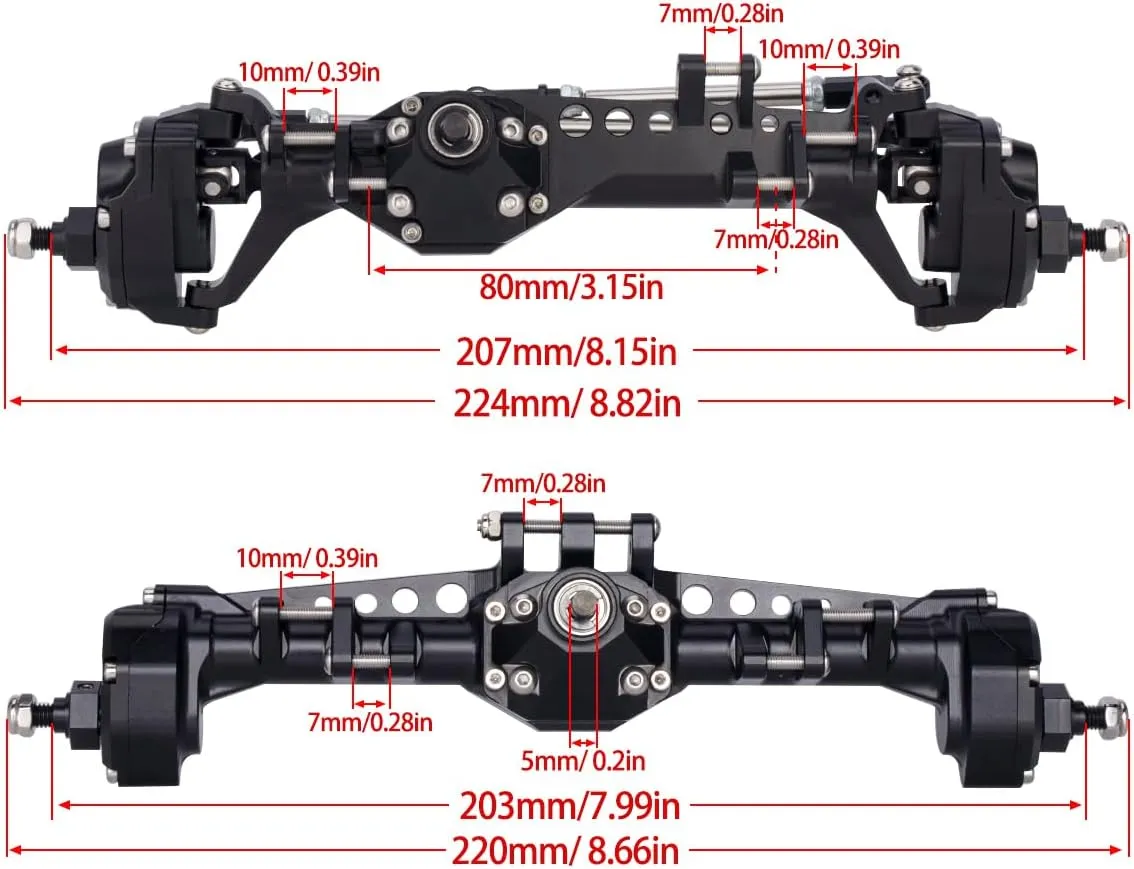

Size: As Shown
Weight:320g(Front Axle),237g(Rear Axle)
5mm Output shafts
12mm Standard Hex
Hex thick:5.6mm
Steering angle: approximately 45 °
Bevel Gear Set: 30T/8T
Portal Gear Set: 28T/20T
Total Gear Ratio=7.19:1
Fit For 1/10 RC Crawler Vanquish VS4-10 Phoenix F10
