- EASY TO INSTALL: Install the wall amplifier system on any wall in the home or office to unlock versatile sound configuration that is easily accessible. Note minor fitting adjustments may be necessary for mounting the wall plate amplifier receiver in certain wall installation applications
- BLUETOOTH CONNECTIVITY: Built in Bluetooth allows you to stream music to a connected intercom or speaker system hassle free. Compatible with all of today's latest smart devices & a wireless range of 30 feet
- MICROPHONE PAGING & SPEAKER CONTROL: This wall plate receiver adds convenient microphone paging ability along with simple source audio control
- HARD WIRE CONNECTIONS: The wall amplifier system can be optionally hard wire powered with an Aux (3.5mm) audio jack for connecting and streaming audio from external devices. The rear panel speaker terminal block allows you to connect the receiver to a pair of speakers
- UPDATED FEATURES: Enjoy features with the in wall bluetooth receiver, like rotary control volume adjustment, 1/4'' mic input, and a USB port for device charging

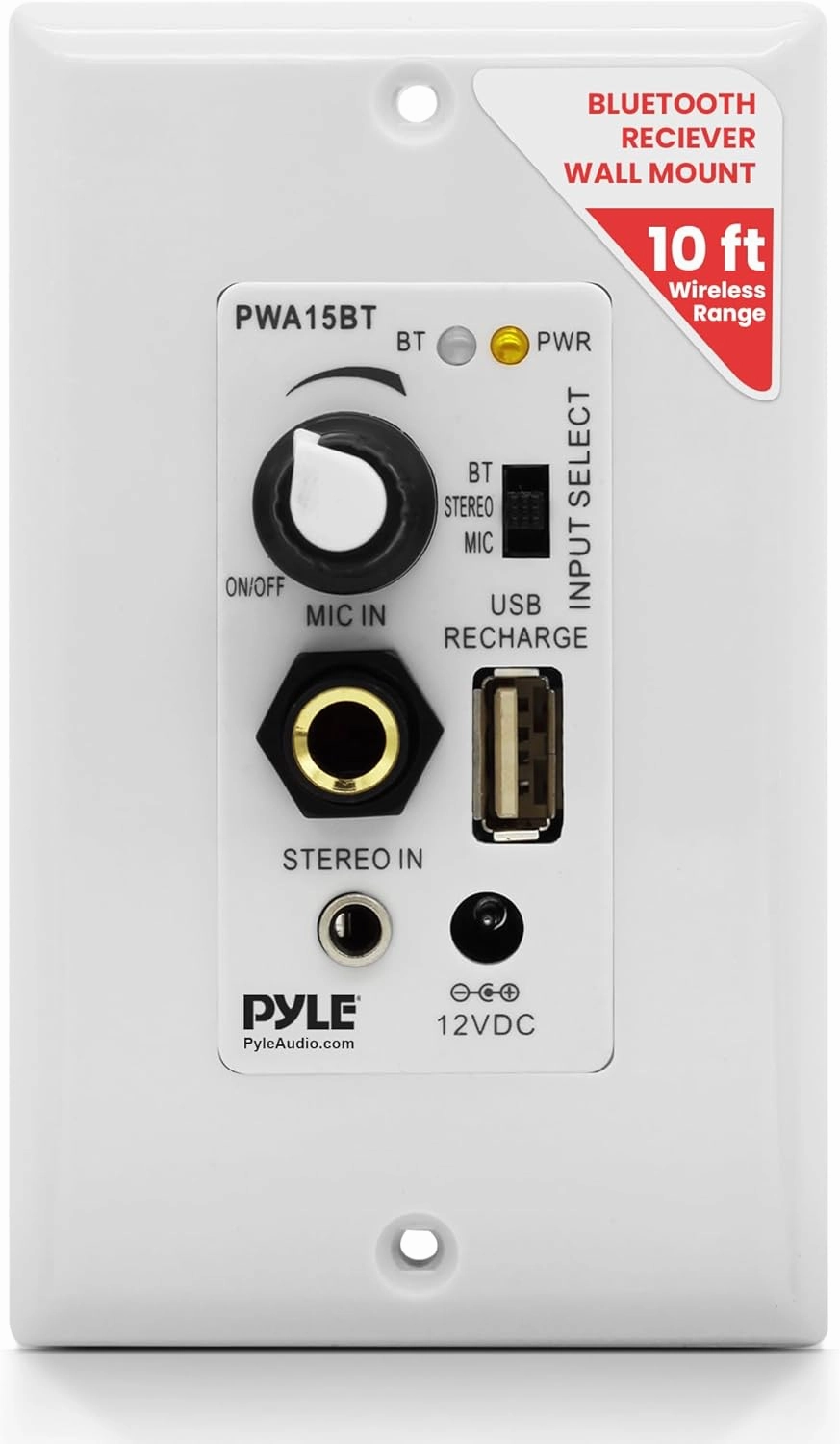

Pyle Model: PWA15BT
Bluetooth In-Wall / Wall Plate Amplifier
Mountable Receiver Audio Control System with USB, Microphone & Aux (3.5mm) Input
Features:- Microphone Paging and Speaker Control Made Easy
- Bluetooth Wireless Music Streaming Ability
- In-Wall Audio Control Receiver with Built-in Amplifier
- Universal Gang Box / Wall Plate Standard Size
- Can be Hard-Wired or Powered via Included Power Cable
- Aux (3.5mm) Input
- Connect & Stream Audio from Your Favorite Devices
- (Smartphones, Tablets, MP3 Players, Laptops, Computers, etc.)
- USB Port for Device Charging
- 1/4'' Microphone Input
- Rotary Master Volume Level Control
- Speaker Terminal Block, Connect (2) Speakers
- Input Selector Switch (Stereo, Mic, Bluetooth)
- LED Indicator Lights
- Power ON/OFF Switch
- Perfect for Home or Office Applications
- Built-in Safety: Circuit and Overload Protection
- Accessories Included: Power Adapter & Wall Plate Cover
- *Power Supply Cable Sold Separately, Pyle Model: ‘PS5A’
- *Mic Only Works When Switched to Microphone Mode
Bluetooth Connectivity:
- Controller Receives & Directs Bluetooth Wireless Audio
- Works with All of Your Favorite Devices:
- (Smartphones, MP3 Players, Tablets, Laptops, Computers, etc.)
- Bluetooth Network Name: 'BT-RY' (No Password Required)
- Wireless Range: 30' Feet (10 Meters)
Technical Specs:
- Power Output: 100 Watt Peak, 40 Watt RMS
- Mic Input Type: Dynamic
- Power Amp Type: Stereo Class-T
- Minimum Load Resistance: 4 Ohm
- T.H.D.: 0.06% (8 Ohm, 1 kHz)
- Power Draw: 2 Amps
- Power: AC 100-240V, 50/60Hz (12V DC Adapter)
Control Bluetooth wireless music streaming in any room with the Pyle In-Wall Amplifier System. This wall plate receiver adds convenient microphone paging ability along with simple source audio control. Install the system on any wall in the home or office to unlock versatile sound configuration that is easily accessible. Built-in Bluetooth allows you to stream music to a connected intercom or speaker system hassle-free. Enjoy features like rotary control volume adjustment, 1/4'' mic input, USB port for device charging -- along with an Aux (3.5mm) audio jack for connecting and streaming audio from external devices. The rear panel speaker terminal block allows you to connect the receiver to a pair of speakers. Universal standard size gang plate fits most deep electrical boxes and allows for a clean installation. Add convenient audio control with the Pyle PWA15BT In-Wall / Wall Plate Bluetooth Audio Control Receiver.
