- Working ranges - 320 mm longitudinal travel X-axis, 100 mm cross path Y-axis, 105 mm height
- Clamping table - clamping surface 400 x 180 mm, 3 grooves in the clamping surface and 1 groove each in the longitudinal sides, width of the grooves for 10 mm T-slot nuts or M10 hexagonal screws
- Trapezoidal thread spindles - in X and Y axis, made of steel, with 4 mm pitch, the spindle clearance is readjustable
- Scale rings - with 2 adjustable scale rings in X and Y axis, reading accuracy of the scale rings 1 mm
- Prism guides in X and Y axis, the prism guides are readjustable

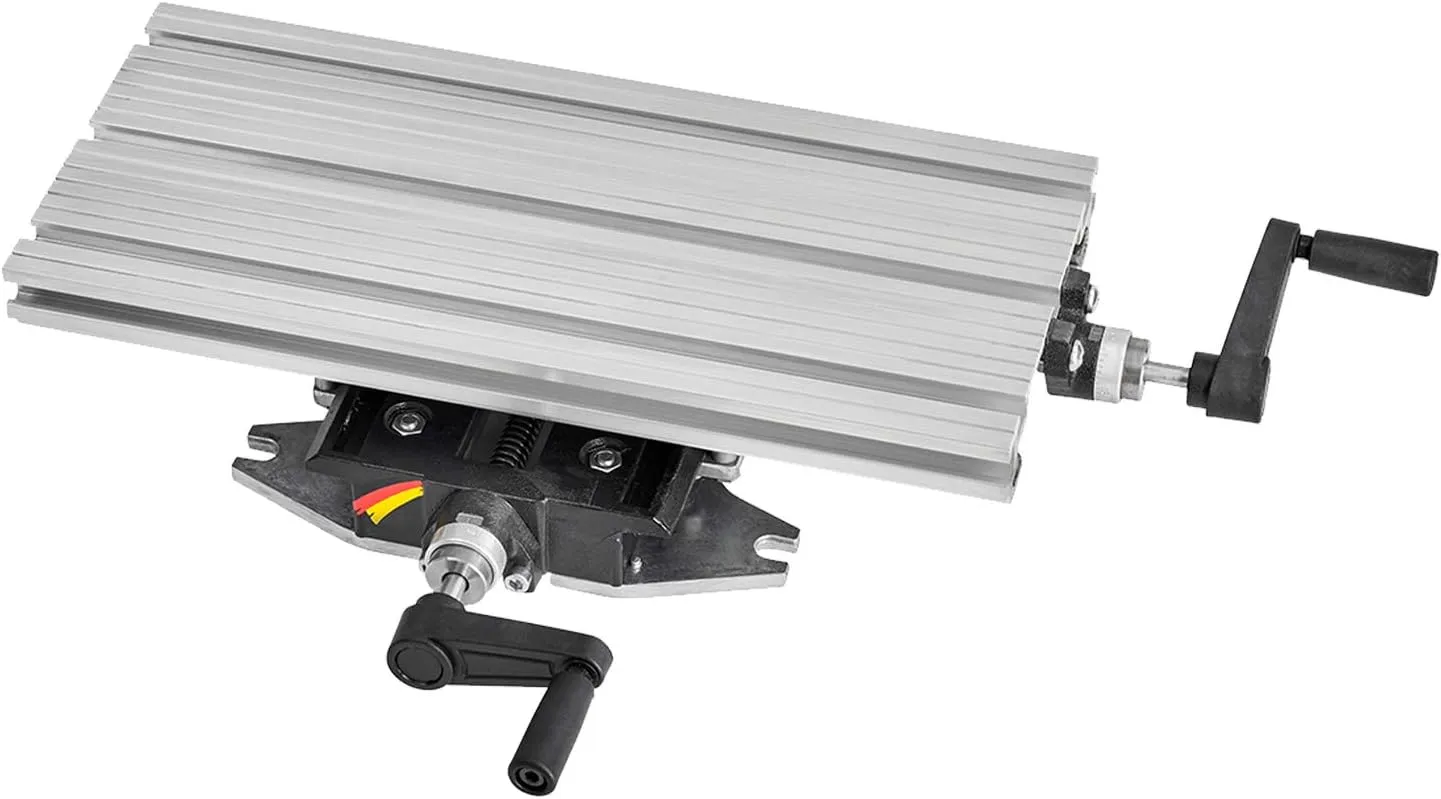

- 2-axis coordinate table K400 with WABECO drill stand milling stand BF, applications - 2 further travel paths in X and Y axis, for milling rectangular pockets and slotted holes, for row drilling diagonally in X and Y axis, for drilling and tapping complicated drill patterns, for machining end sides, for machining outer and inner contours, The turning of
- Versatile - suitable for table, stand and column drills etc., with the WABECO coordinate table, a table, stand or column drill can be upgraded for milling work
Suitable for all bench drills, stand drills, column drills, drill stands and milling stands, as the clamping feet can be individually adapted for each make by drilling and/or longitudinal grooves
